系統處理器採用Dual-core ARM Cortex-A9 MPCore CPU。 |

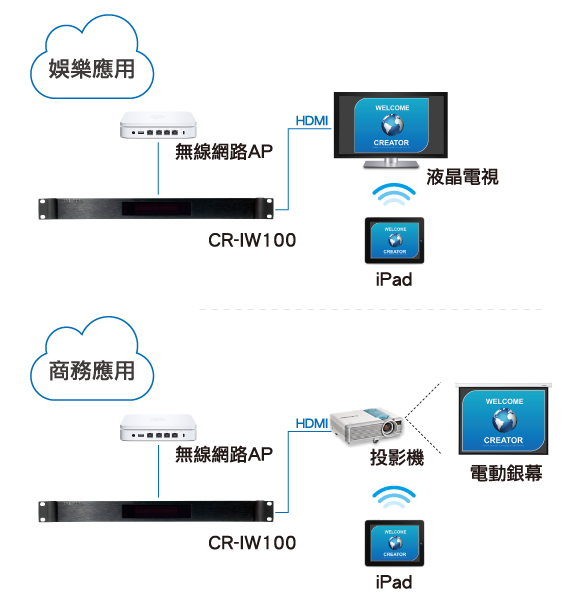

介面需提供HDMI(可支援60/50Hz 的 1080p 或 720p 規格高畫質電視)、Optical audio、10/100BASE-T Ethernet、Built-in IR receiver、Micro-USB(for service and support)。 |
提供Wi-Fi(802.11a/b/g/n)Wireless無線通訊。 |
工作環境可提供Operating temperature:32° to 95° F(0° to 35° C)、Storage temperature:-4° to 113° F(-20° to 45° C)、Relative humidity:5% to 95% noncondensing、Maximum operating altitude:10,000 feet (3000 m)。 |
提供支援顯示JPEG、GIF、TIFF圖片格式。 |
影像播放支援HE-AAC (V1)、 AAC (16 to 320 Kbps)、 protected AAC (from iTunes Store)、MP3 (16 to 320 Kbps)、MP3 VBR、Audible(formats 2、3、and 4)、Apple Lossless、AIFF、and WAV; Dolby Digital 5.1 surround sound pass-through、MPEG-4 video、up to 2.5 Mbps、640 by 480 pixels、30 frames per second、Simple Profile with AAC-LC audio up to 160 Kbps、48kHz、stereo audio in .m4v、.mp4、and .mov file formats、Motion JPEG(M-JPEG)up to 35 Mbps、1280 by 720 pixels、30 frames per second、audio in ulaw、 PCM stereo audio in .avi file format等影像格式。 |
語音系統支援HE-AAC(V1)、AAC(16 to 320 Kbps)、protected AAC(from iTunes Store)、MP3 (16 to 320 Kbps)、MP3 VBR、Audible(formats 2、3、and4)、Apple Lossless、AIFF、and WAV;Dolby Digital 5.1 surround sound pass-through。 |
全鋁合金材質,面板具狀態指示LED燈,可以檢查故障及使用狀況。 |

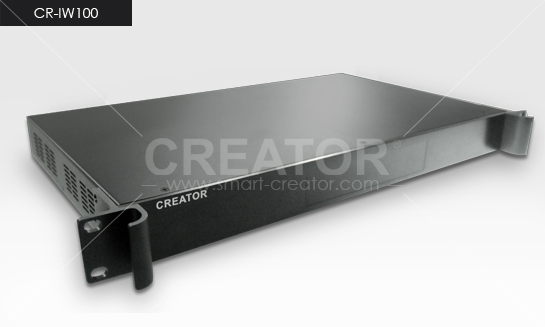

採用1U機箱設計,符合國際機箱標準,可安裝於任何19英寸的機櫃上。 |
主機電源採用AC100~AC200 通用電源,以符合各地電壓不同的需求。 |
產品尺寸:長26.5cm * 寬43cm * 高4.8cm。 |
